vCenter 6.5 – High Availablity Basic configuration

VMware has introduced the vCenter High Availability feature from 6.5 on wards to minimize the significant down time of the vCenter during the Host hardware failure and the patching or any related maintenance.

Basically, it has two configuration options:

  • Basic
  • Advanced

Here we are discussing only the “Basic” configuration of the High Availability feature

There are few special requirements to enable this feature in the vCenter

  • This feature only comes with the vCenter 6.5
  • vCenter deployment size should be at least small therefore 4 vCPUs and 16 GB of RAM required
  • A minimum of 3 Hosts required
  • Hosts should be at least ESXi 5.5
  •  Management network should be configured with a static IP and FQDN should be reachable
  • SSH should be enabled on the appliance
  • Separate Portgroup for the HA network is required
  • HA network must be a different subnet from the management subnet
  • Net work latency between the hosts must be less than 10ms
  • This feature is available with embedded and separate PSC deployment

You can read performance and best practices from this article

Login to your VCSA 6.5 vCenter and go to the “Configuration” and select the “vCenter HA”. Click on “Configure…”

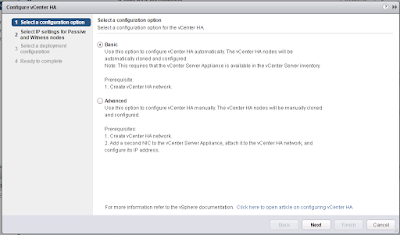

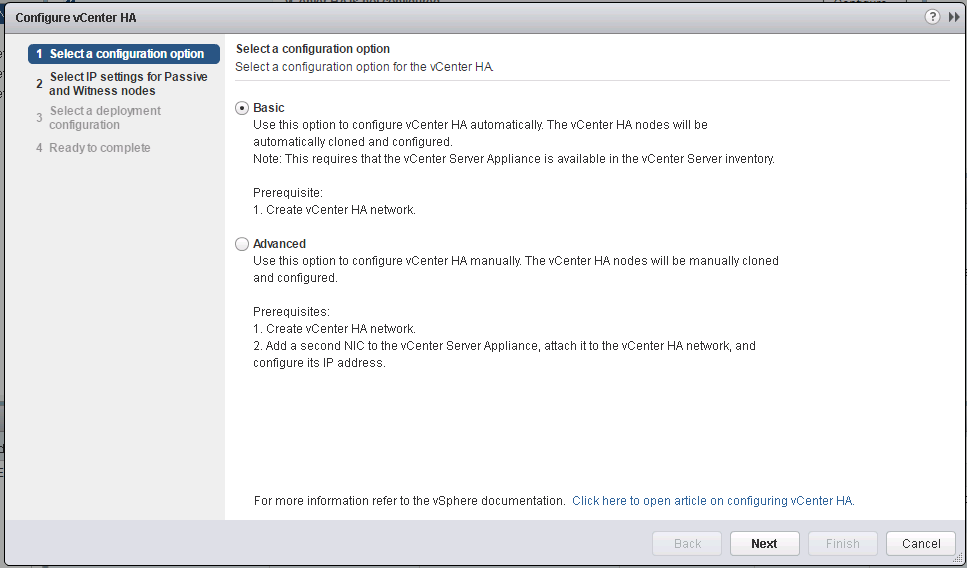

Select the configuration option as “Basic” and click “Next” to continue

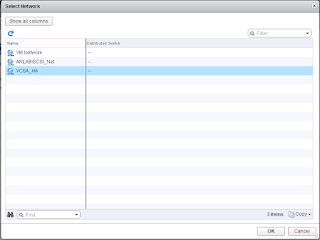

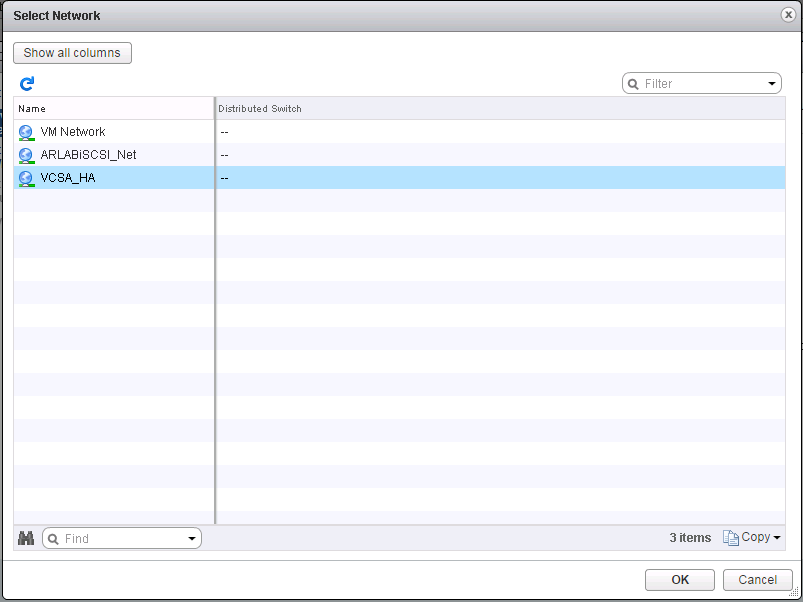

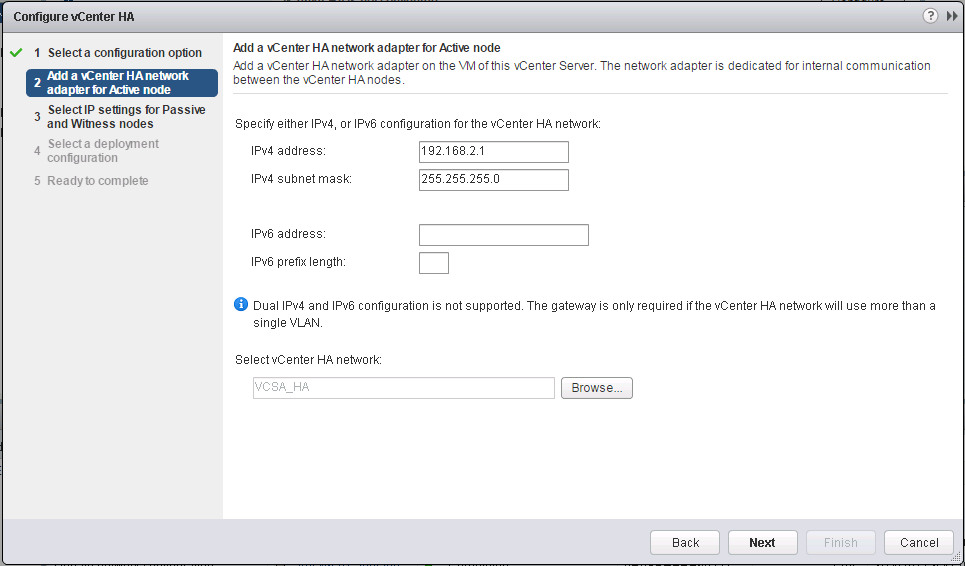

Configure HA adapter IP addresses and select the dedicated port group for the HA Network by clicking the “Browse” button. Once you select it click “Next” to continue

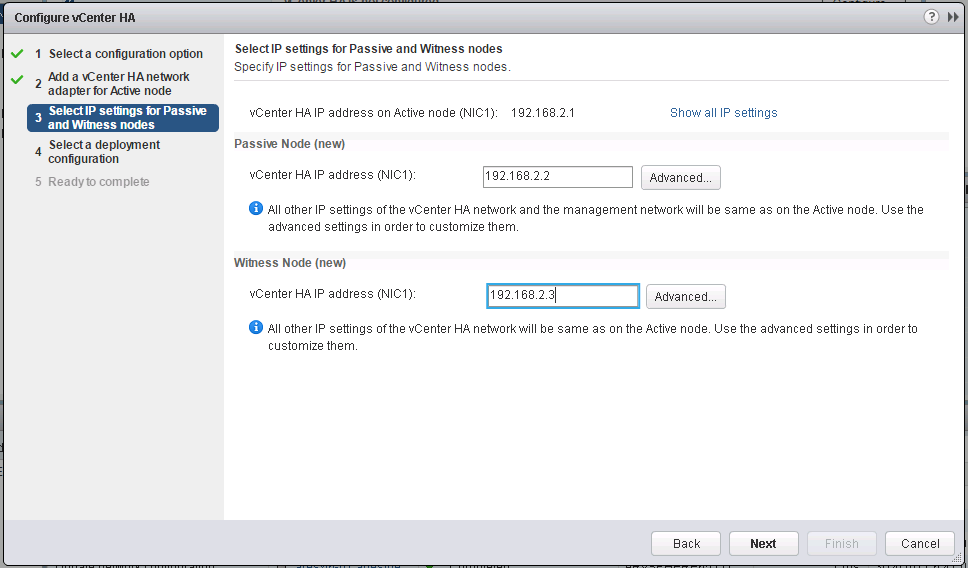

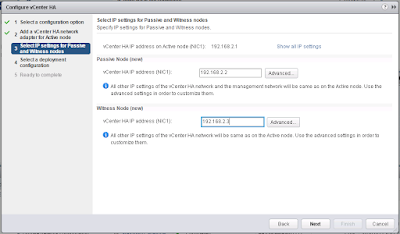

Provide the Passive and Witness node IPs for the deployment


Click on “Advanced” button to Override the Management network upon the failure and specify the Separate DNS servers

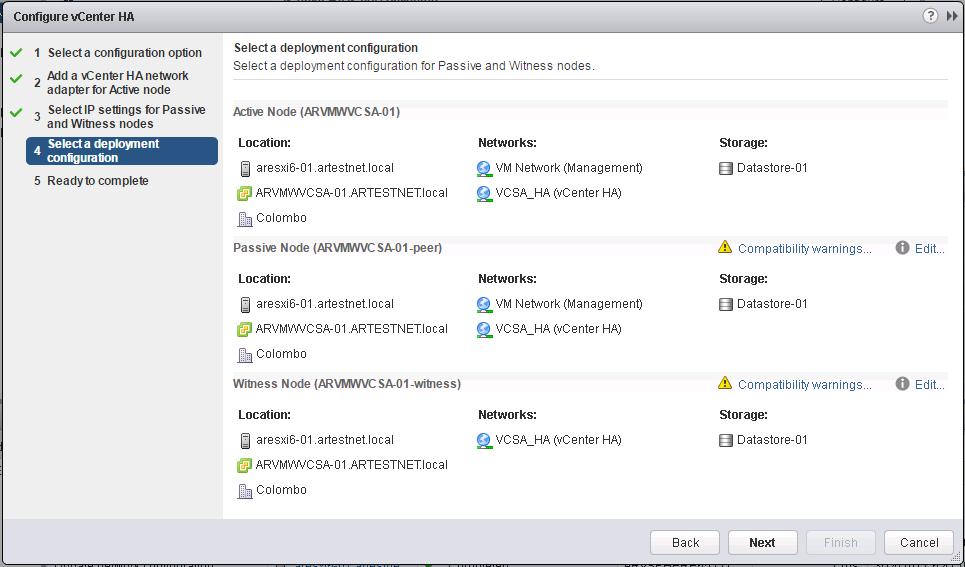

At the next step you can see the placement of the Nodes and there can be compatibility Warnings check the warnings

Most of the Warnings are due to the Datastores, all these Nodes are sitting in the same datastore by default and you can change them by clicking the “Edit” option. In my case I don’t have that much of storage and that was trowing the Warnings.

I have changed the Datastores but it was throwing the warnings due to the free disk space of the datastore

At the next step you can see the summary of the configuration and click “Finish” to complete the Deployment.

You can see the deployment tasks in the tasks window

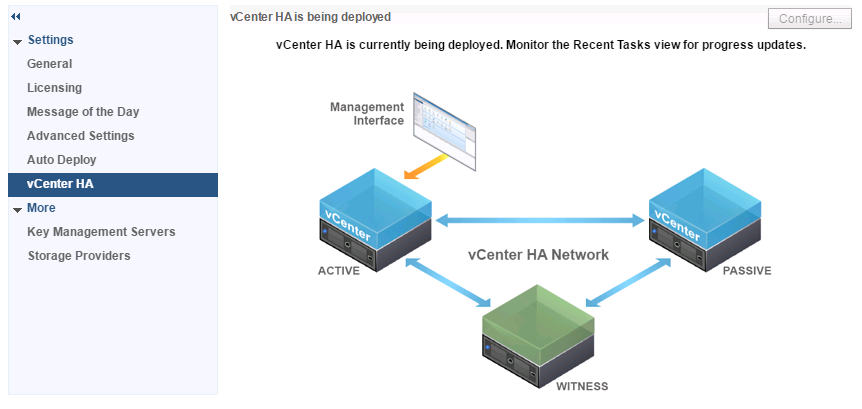

Also, you can see the deploying state in the “vCenter HA” Configuration section

Once it successfully deployed you can see the status of the nodes

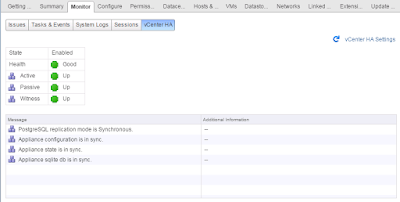

In the Monitoring tab you can see the same status.

That’s the “Basic HA Configuration” and I will show you the Advanced configuration in a different post.
