VMware vSphere 6 – Platform Service Controller Installation

VMware vSphere 6 – Platform Service Controller Installation
In this article I’m focusing on the installation steps of the vSphere 6.0 Platform Service Controller aka PSC before I install the vCenter Server. It is a pretty straight forward installation and You can easily deploy this and integrate to your new vSphere 6.x environment. There are ways we can maintain the High availability of the PSCs, I’m planing to discuss them in a different post.
Basically, PSC deals with the identity management for the vSphere users and applications. Also, below services are installed with the PSC.
  • VMware Appliance Management Service (only in Appliance-based PSC)
  • VMware License Service
  • VMware Component Manager
  • VMware Identity Management Service
  • VMware HTTP Reverse Proxy
  • VMware Service Control Agent
  • VMware Security Token Service
  • VMware Common Logging Service
  • VMware Syslog Health Service
  • VMware Authentication Framework
  • VMware Certificate Service
  • VMware Directory Service

Below VMware products and components are supported with the PSC

  • VMware vCenter Server
  • VMware vCenter Inventory Services
  • VMware vSphere Web Client
  • VMware Log Browser
  • VMware NSX for vSphere
  • VMware Site Recovery Manager
  • VMware vCloud Air
  • VMware vCloud Director
  • VMware vRealize Automation Center
  • VMware vRealize Orchestrator
  • VMware vSphere Data Protection
  • VMware vShield Manager

You can deploy this as an appliance or a windows based server and it is compatible with both Windows/Appliance based vCenter server.

Requirements when deploying the Appliance-based Platform Services Controller:

  •  Processor – Intel or AMD x64 processor with two or more logical cores, each with a speed of 2 GHz
  •  Memory – 2 GB
  •  Disk storage – 30 GB
  •  Network speed – 1 Gbps

Requirements when deploying the Windows-based Platform Services Controller:

  • Processor – Intel or AMD x64 processor with two or more logical cores, each with a speed of 2 GHz
  •  Memory – 2 GB
  •  Disk storage – 4 GB
  •  Network speed – 1 Gbps

Ok, Let’s jump in to the installation straight away…

I’m using a Windows 2008 R2 server to install the PSC component. Mount your vSphere 6.x ISO and launch the installation. Select the “vCenter Server for Windows” to start the installation.

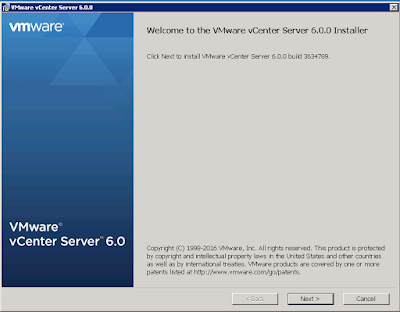

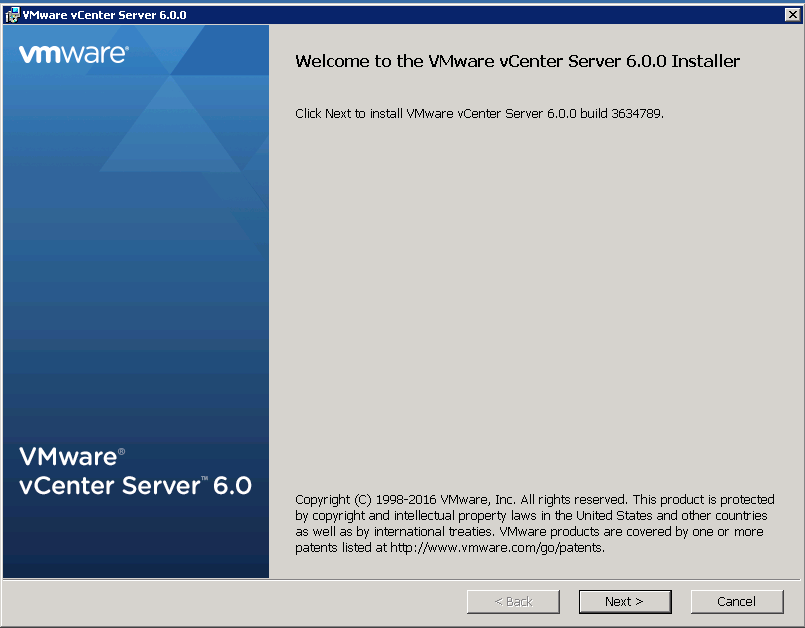

Click “Next” in the Welcome window of the installation

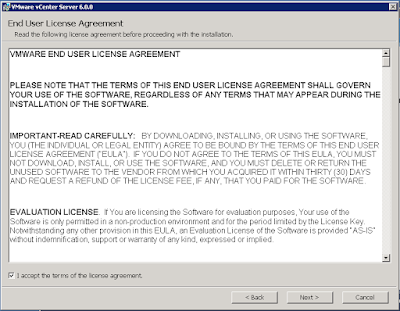

Accept the EULA and click “Next” to continue

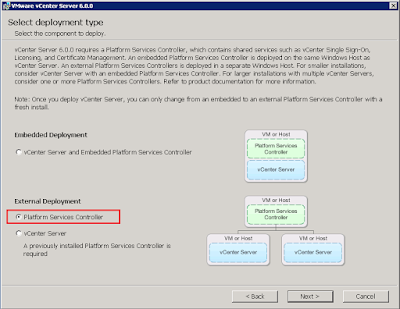

At the next step you have to select the deployment method (Embedded or External) for your environment. If you select the embedded deployment, your PSC and vCenter server will be sitting on the same server. In my case I need these two components separately and my deployment model is “External Deployment”.

You need to provide your system name/FQDN of your PSC.

I really like the next step as I can specify my own SSO domain when I compare to the vSphere 5.x. Specify your SSO domain name, Password for your SSO Administrator and the Site of your PSC sitting at.

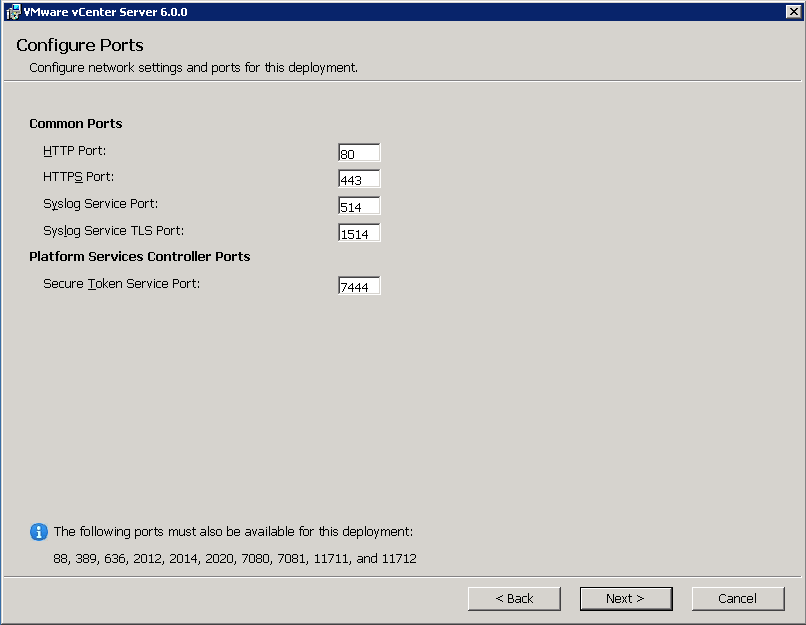

In the next Window You can specify the Http, Https, Syslog and Secure Token ports, I recommend to use the default selection. Click “Next” to continue

Specify the installation directory files and data of your PSC and click “Next” to continue

If you can you can Join to the CEIP and share your experience, Click “Next” to continue after your selection

At the Next step you can view the summary of the installation selections and click “Install” to begin the PSC installation


Click “Finish” to complete the installation

PSC is done and Next,….. vCenter installation…
